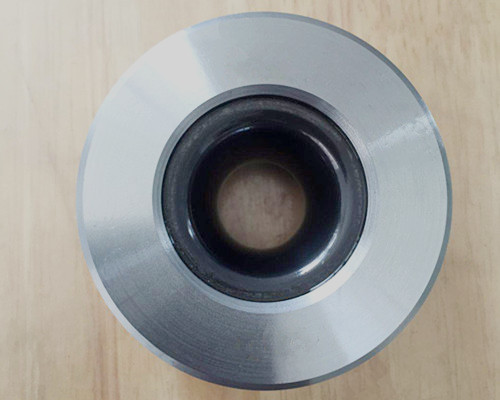

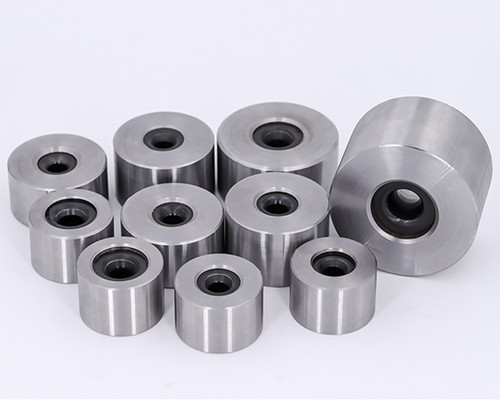

Nano Diamond Coating Dies
- Diameter:1.2mm~60.0mm (0.047"~2.362")
- Coating: Chemical vapor deposition CVD
- Wires:Copper,aluminum,brass,aluminum and alloys
- Product description：Nano Diamond Coating Dies from 0.047" to 2.362" for kinds of wires.
Nano Diamond Coating Dies
|
Physical Properties of the Coating |
|||
|
Vickers Hardness |
Density |
Young Modulus |
Thermal Conductivity |
|
4000kg/mm2 |
3.2g/cm3 |
>1050GPa |
>12w/k.cm |
|
Diamond Grain Size |
Abrasive Ratio |
Thermal Expansivity(k) |
Tensile Strength |
|
≤100nm |
>3x105 |
0.8x10-6 |
0.5x106psi |
|
Chemical Properties of the Coating |
|||
|
Do not produce chemical reaction to any acid and base. |
|||
Nano dies have unique nanocrystalline diamond composite structures(chemical vapor deposition CVD ) to achieve significant productivity improvements.The diamond coating makes nano dies exceptional in durability and smoothness.

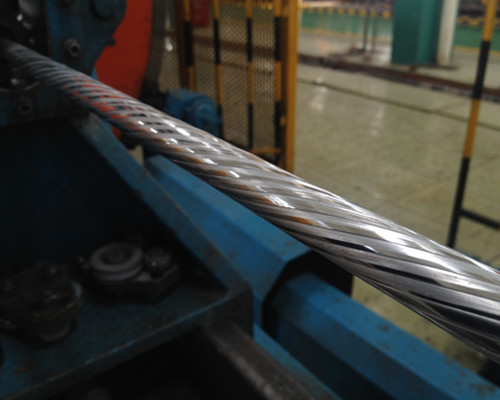

Appliable Wires
Copper,aluminum,brass,aluminum,alloys,low-high carbon and stainless steel wires and tubes.
Features of Nano Diamond Coating Dies
High cost performance.
High production efficiency.
Low friciton.
Bright wire surface.
No wear ring and scratch.
Very hard die surface.
Free of die recutting.
0% tolerance in full die life.
