PCD Wire Drawing Dies

Diameter : 0.1mm ~ 29.0mm (0.00315'' ~1.1417”)
Grain size :3um,5um,10um,25um,50um
Wires:black metal,nonferrous wires,ferrous wires,pipes

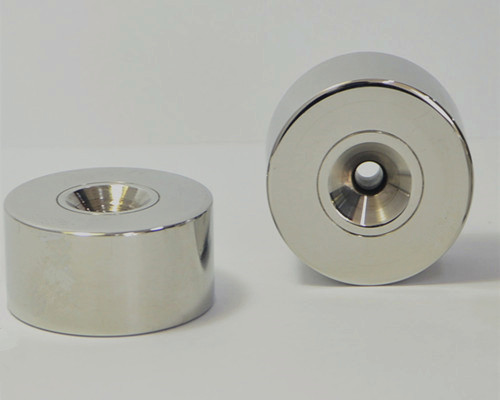

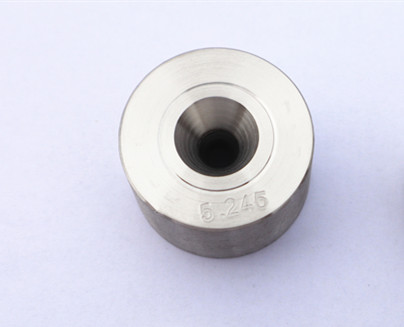

Product description：PCD wire drawing dies,Polycrystalline diamond dies for ferrous and nonferrous wires.
INQUIRY

PCD（Polycrystalline Diamond）is synthetic diamond product. The carbon molecule forms PCD under ultra high temperature and press. Strong bond between diamond particle make PCD have higher abrasive resistance,hardness as well as good thermal conductivity. Moreover, PCD can be easily processed to dies with wider range of diameter ,long life time and high economic benefits.

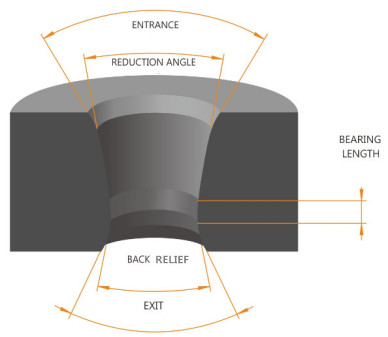

Inner geometry

Inner geometry of the PCD dies have“Entrance,approaching,reduction,bearing length and exit part”.
a. Entrance: For wire entering,prevent the dies from wire hurting.
b. Approaching: Make the wire to be accessible for lubricant.
c. Reduction : The wire begins to transform from original diameter to smaller diameter.
d. Bearing: The wire achieves to the final diameter.

e. Back Relief: Prevent the final wire surface from scratching.

f. Exit: Wire exiting.

Recommended Parameter for kinds of wires

Reduction ratio Wires (Reduction angle)	5~8%	8~12%	12~16%	16~25%	25~35%	Bearing Length(%)
Gold,silver,lead,zinc	14〫	16〫	18〫	22〫	24〫	20%~40%
Copper, Aluminum,nickel	10〫	12〫	14〫	18〫	22〫	20%~40%
Stainless steel,Copper alloys, Aluminum alloys	9〫	11〫	13〫	16〫	18〫	30%~70%
High carbon steel	8〫	10〫	12〫	15〫	18〫
Tungsten,Molybdenum, Platinum,Ni-Cr alloys	10〫	10〫	12〫	14〫	16〫

Diameter (in inch)	Diameter (in mm)	ADDMA	Tolerance(mm)	Roundness(mm)
0.0039~0.0197	0.10~0.50	D6	0.001	0.001
0.0118~0.0394	0.30~1.00	D12	0.001	0.001
0.0197~0.0591	0.50~1.50	D15	0.002	0.001
0.0315~0.0787	0.80~2.00	D18	0.003	0.002
0.0472~0.1220	1.20~3.10	D21	0.004	0.002
0.0591~0.1732	1.50~4.40	D24	0.005	0.003
0.1299~0.2283	3.30~5.80	D27	0.005	0.004
0.2008~0.3543	5.10~9.00	D30	0.007	0.005
0.3150~0.4921	8.00~12.50	D33	0.010	0.008
0.3150~0.5000	8.00~12.70	D36	0.010	0.010
0.3150~1.1417	8.00~29.00	D36+	0.015	0.015

Appliable Wires

PCD dies can be widely used for drawing many kind of wires, such as copper, aluminum,gold,silver,nickel,chrome, molybdenum,wolfram,steel cord,electric wire & cable,gas shield welding wire,flux-cored wire,automobile wire,pipe line,construction wire,rigging wire,optical fiber and so on.

Features of PCD Wire Drawing Dies

Advanced manufacturing and inspecting machines.

Superior abrasive resistance and hardness, long life time.

Imported sintering powder with high reinforcement.

Predictable wire surface, roundness.

100% inspected by machine,high accuracy,conformity.
